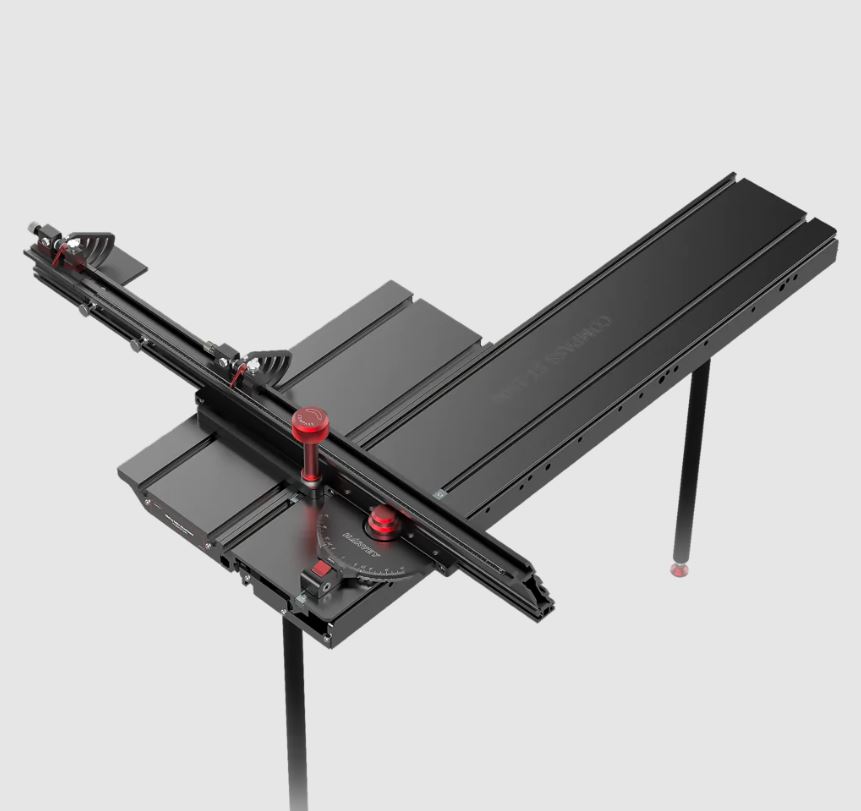

PRODUCT FEATURES

• Suitable for a variety of table saws including the  Ambassador C200-30, Alpha HW110LC-36, Alpha HW110LC-36P and Alpha HW110S-36.
• Industrial Grade Slider with preloaded V-shape ball bearing tracks for increased smoothness and accuracy during operation.
• Mitre Fence System designed with a solid fence body and  extension.
• Smart Trigger Locking device.
• Mitre gauge with 7 positive stops
• Micro adjustable flip stop.
• Made from quality materials including anodised aluminium alloy, brass and stainless steel.

TECHNICAL INFORMATION

• Sliding Table Size:  228.5mm x 1200mm
• Extension Table Size:  228.5mm x 600mm
• Maximum Table Travel: 1540mm
• Maximum Crosscut Capacity: 1240mm
• Fence Extension: 1500mm
• Mitre Angle Range:  – 60° ~ + 60°
• Crosscutting Fence Length: 1090mm
• Fence Scale: Metric
• Positive Stops:   – 60°, – 45° , – 22.5° , 0° , + 22.5°,  + 45° , + 60°
• Vernier Reading Resolution: 0.1°
• Micro Adjustment Accuracy: 0.02mm
• Package Dimensions: 1260mm x 300mm x 305mm
• Net/Gross Weight: 35kgs / 40kgs
