Pipe Size

1/2" NPT

Overall Height

18 in

Overall Width

15 3/8 in

Overall Depth

18 in

Connection Size - Air Treatment

1/2 in NPT

Air Outlet Size

1/2 in

Inlet Size (Combined)

1/2 in NPT

Air Inlet Size

1/2 in

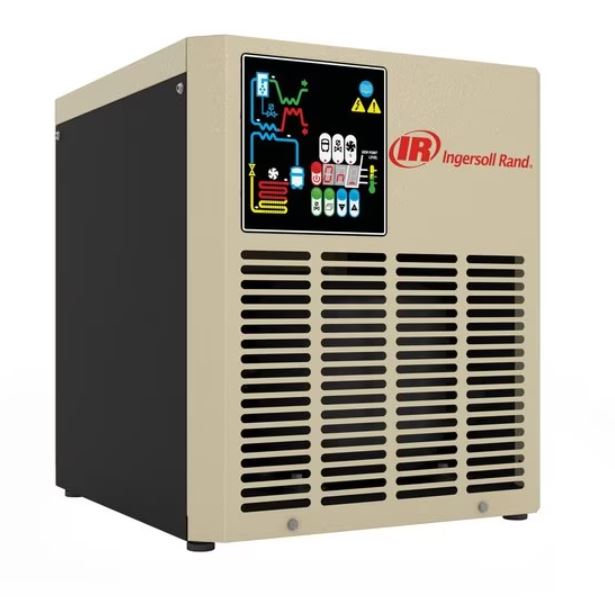

Item

Refrigerated Air Dryer

Includes

Electronic Auto Drain

CFM

25

Phase

1

Voltage

115VAC

Max. Pressure

203 psi

Refrigeration Compressor (HP)

1/6

ISO Class

6

Refrigerant

R-134A

Dew Point

50 Degrees F

Max. Inlet Temp.

140 Degrees F

Phase - Air Treatment

Single

Full Load Amps

3.6 A

Finish

Powder Coated

Max. Air Compressor HP

7.5 hp

Max. Ambient Temp.

122 Degrees F

Max. Flow - Air Treatment

25 cfm

ISO Class - Air Treatment

6

Input Voltage - Air Treatment

115V AC

Features

Fan, Integrated Separator

Heat Exchanger Material

Aluminum

Item - Refrigerated Air Dryers

Refrigerated Compressed Air Dryer

Max. Incoming Pressure - Air Treatment

203 psi

Refrigeration Compressor HP

1/6 hp

Power

0.18 kW

Max. Inlet Temp. - Air Treatment

140 Degrees F

Refrigeration Compressor Horsepower

0.166666666 hp

Air Inlet Gender (Broad - abbreviation)

F

Cycling Type

Non-Cycling

Phase (Broad - Abbreviation)

1

Drain Type

Electronic

Standards

CAGI

For Maximum Compressor Output Power

7.5 hp

Weight

60 lb

Air Inlet Gender

Female

Number of Air Inlets

1

Full Load Current

3.6 A

Maximum Flow Rate

25 cfm

Maximum Ambient Temperature

100 Degrees F

Maximum Flow @ 100 psi

25 scfm

Series

D

Air Inlet Type

NPT

Frequency

60 Hz

Maximum Operating Temperature

140 Degrees F

Drain Included

Yes

Maximum Operating Pressure

203 psi

Air Outlet Type

NPT

Filtered Substance

Oil, Water

Filter Type

Coalescing

Number of Air Outlets

1
